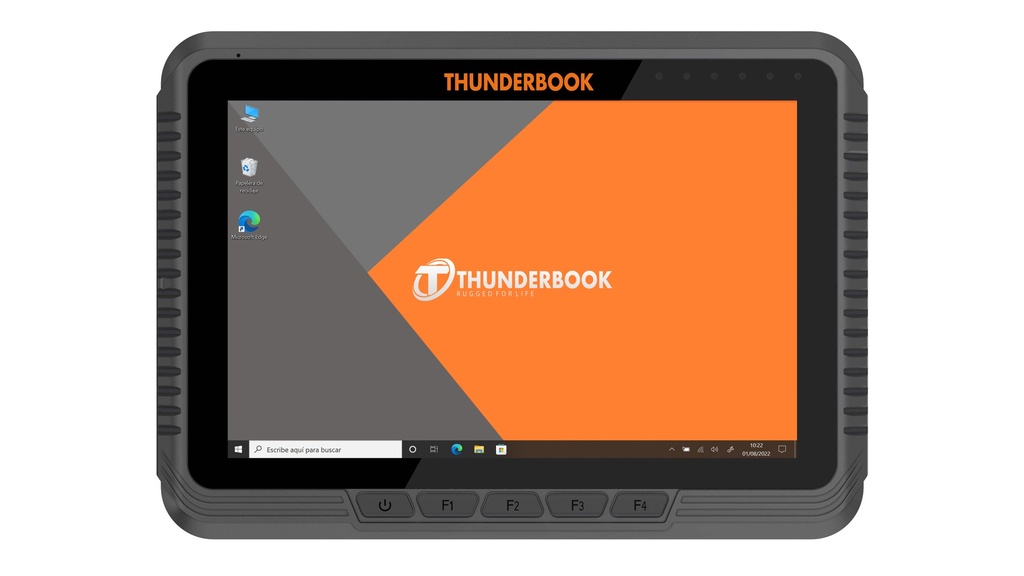

ODEON W100
10" Windows Forklift Terminal
Easy Installation
3 X USB
2 X RS-232
1 X RJ45
1 X Power Connector
VESA O RAM
Performance Meets Ruggedness
IP65 Water and Dust Resistance
Operating Temperature: -20ºC to 60ºC
Intel Celeron N5100 CPU
8GB RAM
128GB SSD
Start your digital transformation now
UNMATCHED CONNECTIVITY
Dual-Band WI-FI 5
GPS
4G Modem
Designed for Outdoor Use
Enjoy full sunlight visibility for your applications
Anti-vibration system and rugged mounting support
10" Display
700 nits
Advanced Vehicle Functions
UPS-Type Internal Battery
Threaded Stainless M12 Connectors M12
Wide Input Voltage Range
Your Operations Secured
Ruggedness, Performance, and ROI
Do you want a personalized offer?
Specifications
| Operating System Version | WINDOWS 11 PRO or WINDOWS 11 IOT ENTERPRISE or LINUX UBUNTU 24.02 |
| EXTRA | STANDARD or INTERNAL BATTERY 1000mAh or INTERNAL BATTERY 1000mAh + 4G MODEM + DEDICATED GPS or 4G MODEM or INTERNAL BATTERY 1000mAh 7.2VDC + 4G MODEM |
| Size | 10" |
| Resolution | 1280 x 800 |
| Screen | 700 NITS - HD |
| Processor, RAM, DISK | Celeron N5100, 8GB, 128GB SSD |
| Wifi+BT adapter | WIFI AC |
| Operating System Type | Windows |
| Battery Autonomy | 30min |
| Battery Capacity | 1000mAh |
| Removable Battery | No |
| Dimensions (Width, Length, Depth, mm) | 264 x 184 x 23 |
| Weight | 835g |
| Dust & Water Protection | IP65 |
| Operating Temperature | -20ºC to 60ºC |
| USB-A 3.0 | Yes |
| USB-A 2.0 | Yes |
| Ethernet (RJ45) | Yes |
| Slot SIM | Yes |
| Touch Technology | Projected Capacitive Multi Touch |
| Model | O1020 |
